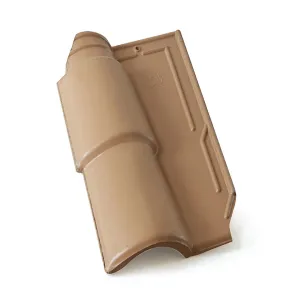

It resembles the appearance of a "7". Two precisely designed waterproof lines block out more wind and rain intrusion. The raised tile arch, streamlined waist, and straight board are connected to adjacent tiles. Not only does it reflect the essence of China's "harmony" tile culture, but it is also filled with the romantic elegance of Europe.
Item | Value/Description |

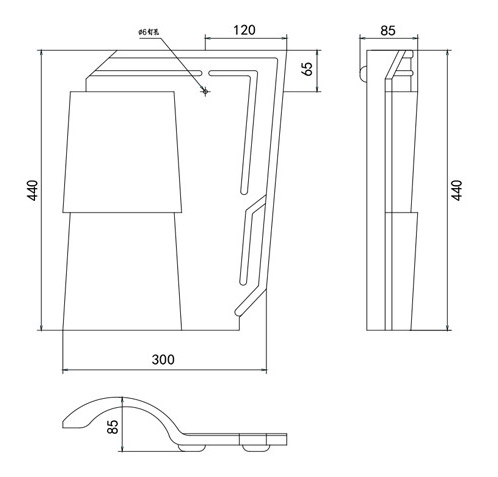

Overall Dimensions | 440mm × 300mm × 65mm |
Molding Method | Compression molding |
Effective Tile Area | Effective length 370mm Effective width 275mm |
Side Overlap Width | 25mm |
Water-flow Batten Usage | Approx. 1.8m/m² (spacing 600mm) |
Tile-hanging Batten Usage | Approx. 3.2m/m² (spacing 310-330mm) |
Tiles Per Unit Area | Approx. 10 pcs/m² |
Weight | Approx. 4.0 ± 0.18kg per piece |
Load-bearing Capacity | ≥ 1650N |
