Without the distortion caused by the dance of clay and fire,
Without the tearing caused by the dazzling display of glass.
A simple and beautiful appearance,
Highlighting the porcelain and glass of the acacia tree,
And make it difficult for your uncle to argue.
Item | Value/Description |

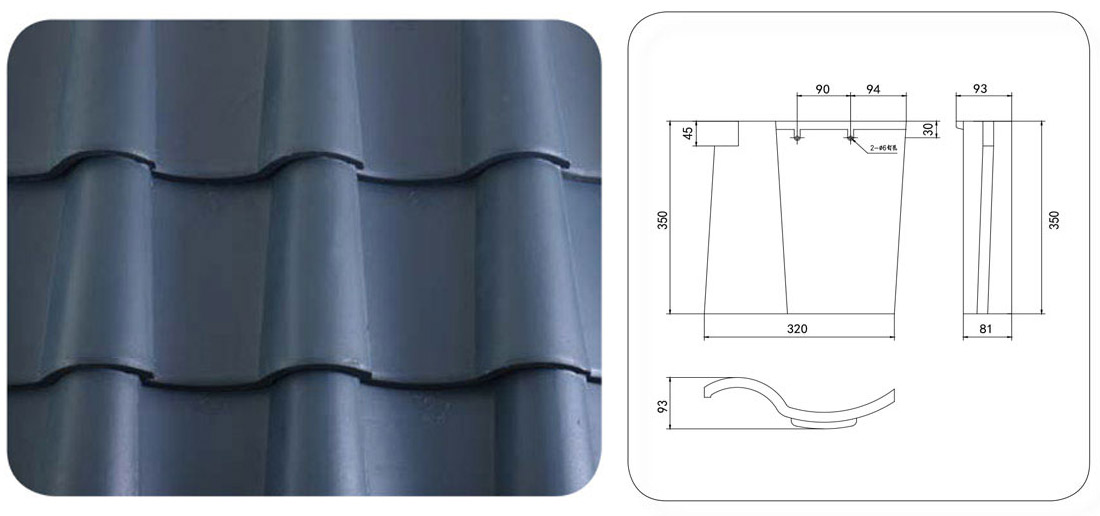

Overall Dimensions | 350mm × 320mm × 65mm |
Molding Method | Compression molding |
Effective Tile Area | Effective length 305mm Effective width 285mm |
Side Overlap Width | 35mm |
Water-flow Batten Usage | Approx. 1.8m/m² (spacing 600mm) |
Tile-hanging Batten Usage | Approx. 3.2m/m² (spacing 310–330mm) |
Tiles Per Unit Area | Approx. 11.8 pcs/m² |
Weight | Approx. 3.8 ± 0.18kg per piece |
Impermeability | No water droplets observed on the back after 24h immersion test |
Water Absorption | <10% |
Heat Resistance | Surface coating remains intact after heat resistance test |
Load-bearing Capacity | ≥ 1710N |
Overlap Method | Vertical interlocking and horizontal overlapping |
Frost Resistance | Conforms to JC/T746–2007 standard; after 25 freeze-thaw cycles (saturated in water, frozen at -20℃ for 3h, thawed in 20℃ water for 1h), appearance quality, impermeability and load-bearing capacity meet requirements |
